Q647F Pneumatic Fixed Ball Valve
Product overview
Product model: Q647F
Nominal diameter: DN50~500mm
Nominal pressure: PN1.6~6.4MPa
Applicable temperature: -28℃ ~ 300℃
Applicable medium: water, steam, oil, nitric acid, acetic acid
Drive mode: manual, pneumatic
Structure length: GB1221-89
Flange size: GB9113, JB79-59
Inspection test: JB/T9092-99
Pneumatic Fixed Ball Valve overview
Q647F Pneumatic Fixed Ball Valve produced and sold by Baigang valve group, pneumatic ball valve, ball valve is a two-way valve, flow unlimited.The middle flange is connected by stud, and the upper and lower valve stem are provided with sliding bearings to reduce friction, and the operation is labor-saving and smooth.Under normal circumstances, when the low pressure seating rely on spring pre-tightening force to seat close to the sphere seal, high pressure, the formation of piston effect on the seat, under the effect of upstream medium pressure, make the seat clamp sphere to seal fixed ball valve, pneumatic, pneumatic ball valve, ball valve is widely used in process control system implemented on or off.
Pneumatic Fixed Ball Valve technical parameters
| Valves | transfer method | Link form | structure type | Sealing surface | Nominal pressure (MPa) | Body material |
| Ball valve |
6-pneumatic 6s-pneumatic band manual |
4-flange |
Fixed ball straight |
F-Fluoroplastic H-alloy steel PPL |
1.6 2.5 4.0 6.4 |
According to the table body material code |
| Nominal diameter DN (mm) | 50-500 | |||||
| Material code | C | P | R | |||
| The main parts | Body | WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti | ||
| Ball board | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12MoTi | |||
| Valve stem | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12MoTi | |||
| Sealing ring | Enhanced polytetrafluoroethylene alignment poly stupid | |||||
| filler | Polytetrafluoroethylene flexible graphite | |||||
|
Fitness with working conditions |
Suitable media | Water, steam, oil | Nitric acids | Acetic acid | ||
| proper temperature | -28 ° C to 300 ° C | |||||
| Control type | Double-acting / single-acting | |||||
| The role of type | Cut / adjust | |||||
| input signal | Electrical signal: 0 ~ 10mA, -4 ~ 10mA gas signal 20 ~ 100kPa | |||||
| Reply voltage | AC220V / DC24V | |||||
| Working medium | Purification compressed gas | |||||
| Actuator | model | GT series, HY series, AW series, ZSH series | ||||
| Air pressure | 0.4 ~ 0.7MPa | |||||

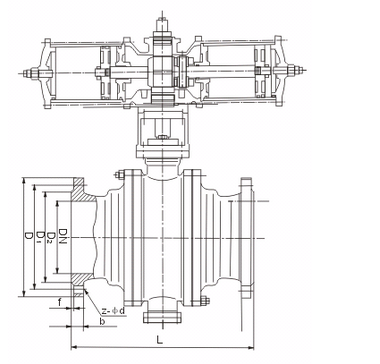

Pneumatic Fixed Ball Valve installation dimensions
| Nominal diameter DN (mm) | Size (mm) | Actuator model | ||||||||||||||
| 1.6MPa | 2.5MPa | 4.0MPa | ||||||||||||||
| L | D | D1 | B | Z-φD | L | D | D1 | B | Z-φD | L | D | D1 | B | Z-φD | ||
| 50 | 203 | 160 | 125 | 16 | 4-18 | 216 | 160 | 125 | 20 | 4-18 | 216 | 160 | 125 | 20 | 4-18 |
Optional GTD / GTE, AW / AWS, HY, ZSH series actuators (the above optional only for the specific election based on actual requirements) |
| 65 | 222 | 180 | 146 | 18 | 4-18 | 241 | 180 | 145 | 22 | 8-18 | 241 | 180 | 145 | 22 | 8-18 | |
| 80 | 241 | 195 | 160 | 20 | 8-18 | 283 | 195 | 160 | 22 | 8-18 | 283 | 195 | 160 | 22 | 8-18 | |
| 100 | 305 | 215 | 180 | 20 | 8-18 | 305 | 230 | 190 | 24 | 8-23 | 305 | 230 | 190 | 24 | 8-23 | |
| 125 | 356 | 245 | 210 | 22 | 8-18 | 381 | 270 | 220 | 28 | 8-25 | 381 | 270 | 220 | 28 | 8-25 | |
| 150 | 394 | 280 | 240 | 24 | 8-23 | 403 | 300 | 250 | 30 | 8-25 | 403 | 300 | 250 | 30 | 8-25 | |
| 200 | 457 | 335 | 295 | 26 | 12-23 | 502 | 360 | 310 | 34 | 12-25 | 502 | 375 | 320 | 38 | 12-30 | |
| 250 | 533 | 405 | 355 | 30 | 12-25 | 586 | 425 | 370 | 36 | 12-30 | ||||||
| 300 | 610 | 460 | 410 | 30 | 12-25 | 648 | 485 | 430 | 40 | 16-30 | ||||||
| 350 | 686 | 520 | 470 | 34 | 16-25 | 762 | 550 | 490 | 44 | 16-34 | ||||||
| 400 | 762 | 580 | 525 | 36 | 16-30 | 838 | 610 | 550 | 48 | 16-34 | ||||||
| 450 | 864 | 640 | 585 | 40 | 20-30 | 914 | 660 | 600 | 50 | 20-34 | ||||||
| 500 | 914 | 705 | 650 | 44 | 20-34 | 991 | 730 | 660 | 52 | 20-41 | ||||||
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the Q647F Pneumatic Fixed Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
