J11W-16T Screw Globe Valve
Product overview
Product model: J11W-16T
Nominal diameter: DN8~100mm
Nominal pressure: 1.6MPa
Working medium: water, gas, oil
Operating temperature: -20℃≤ T ≤100℃
Pipe thread conforms to ISO228 standard

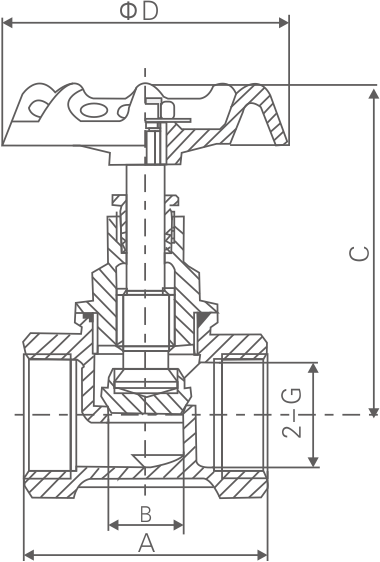

J11W-16T Screw Globe Valve main shape and connection dimensions:
|
DN |
SIZE |
L |
B |
H |
D |
|
8 |
1/4 |
40 |
10.5 |
61 |
45 |
|
10 |
3/8 |
40 |
10.5 |
61 |
45 |
|
15 |
1/2 |
46 |
17 |
72.5 |
60 |
|
20 |
3/4 |
54 |
17 |
72.5 |
60 |
|
25 |
1 |
67 |
22 |
86 |
72 |
|
32 |
11/4 |
77 |
27 |
97 |
80 |
|
40 |
11/2 |
83 |
34 |
116.5 |
100 |
|
50 |
2 |
104 |
43 |
132.5 |
110 |
|
65 |
21/2 |
170.5 |
65 |
197 |
178 |
|
80 |
3 |
245 |
80 |
277 |
200 |
|
100 |
4 |
270.5 |
100 |
316 |
240 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the J11W-16T Screw Globe Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
